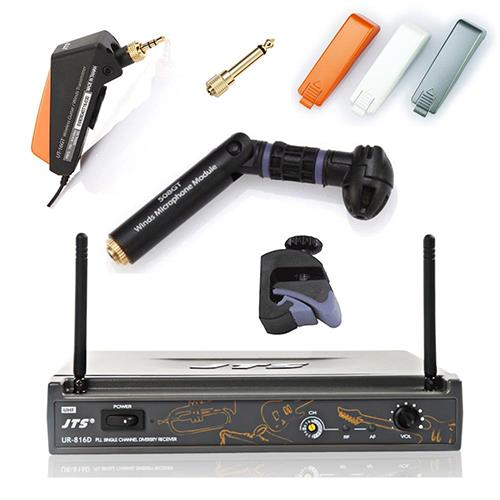

JTS UR-816D + UT-16GT Gitar ve Üflemeli Telsiz Mikrofonu (UR-816D-UT16GT)

Kablosuz Enstruman Mikrofon Seti

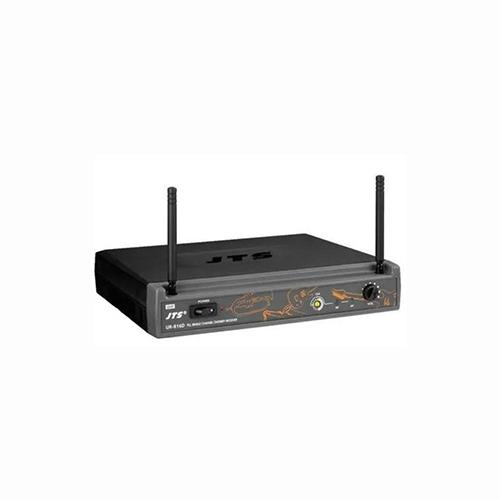

UR-816D
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
3x Frequency Range     856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 HHz (I band)
502.000 - 694.000 MHz (T band)
S/N ratio > 105dB
T.H.D. <0.6%@1KHz
Display LED
Display Contents Antenna A/B, RF/AF Status
Controls Power On/Off, Channel Selecting, Audio Level
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Operation Voltage 12-18 VDC, 200mA
Output Connector 1 Balanced XLR socket
1 Unbalanced Ø6.3mm phone jack
Dimension(m/m 210mm (W)* 40mm (H)* 171mm (D)

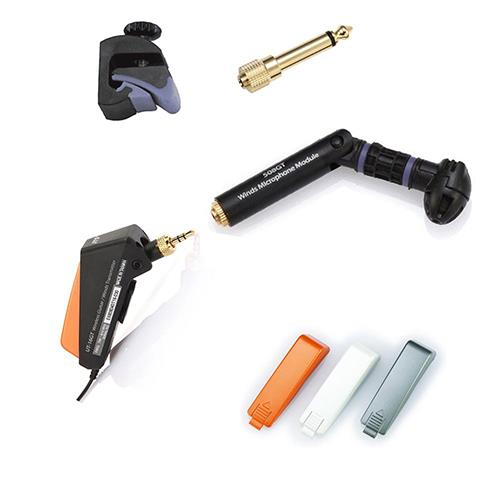

UT-16GT
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
3x Frequency Range     856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 HHz (I band)
502.000 - 694.000 MHz (T band)
RF Outputs Maximum 10mW
Stability ±10KHz
Frequency Deviation. ±48KHz
LED Display Power On/Off, Low battery
Controls Power On/Off, AF Level, Channel Selecting, Mute
Spurious Emissions <-50 dBC
Audio Frequency Response  40~18,000 Hz
Battery LR03, AAA 1.5V
